UFK SERIES WEATHERPROOF ISOLATING SWITCHES

DESCRIPTION:

The UKF Series of Weatherprotected Isolating Switches is a robust range of switches suitable for virtually any exterior application.

Included in the range are single, double and triple pole switches from 20 to 80 Amps.

The base mounted mechanism provides for easier termination and more wiring room.

Switch dimensions are 165mm x 82mm with an overall height of 85mm.

FEATURES:

1. Switching ON & OFF on-load

2. Padlockable handle with 7mm hole in OFF position Dual 25mm threaded conduit entries on top and

bottom IP66 rating prevents from heavy dust and water ingress.

3. UKF&UKW isolator is rigidly built to withstand more than just the vagarise of the weather.

4. It is designed also for frequent swiching even on severe load such as switching of motor loads or othe highly inductive load.

5. Suitable to be mounted in outdoor and indoor for diverse environment.

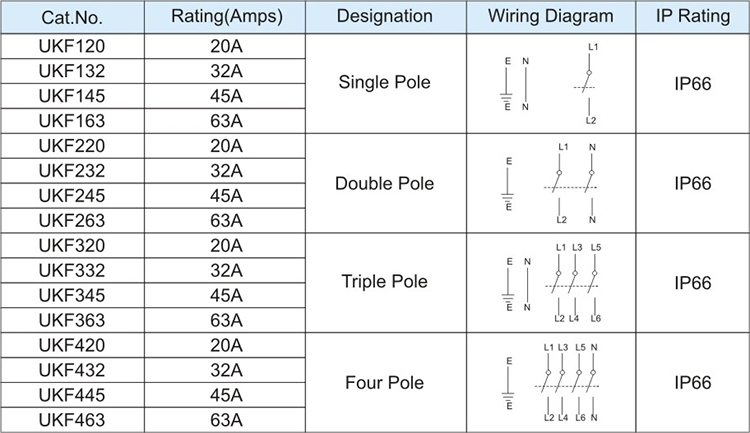

Technical Specification:

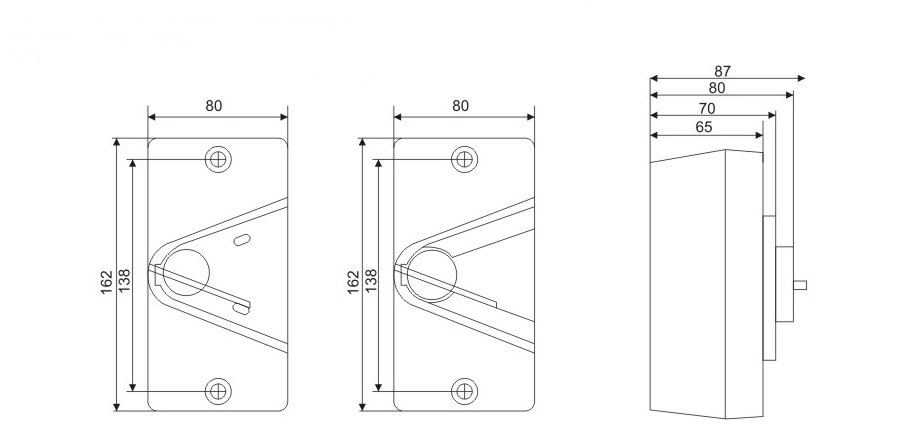

Mounting Dimensions:
