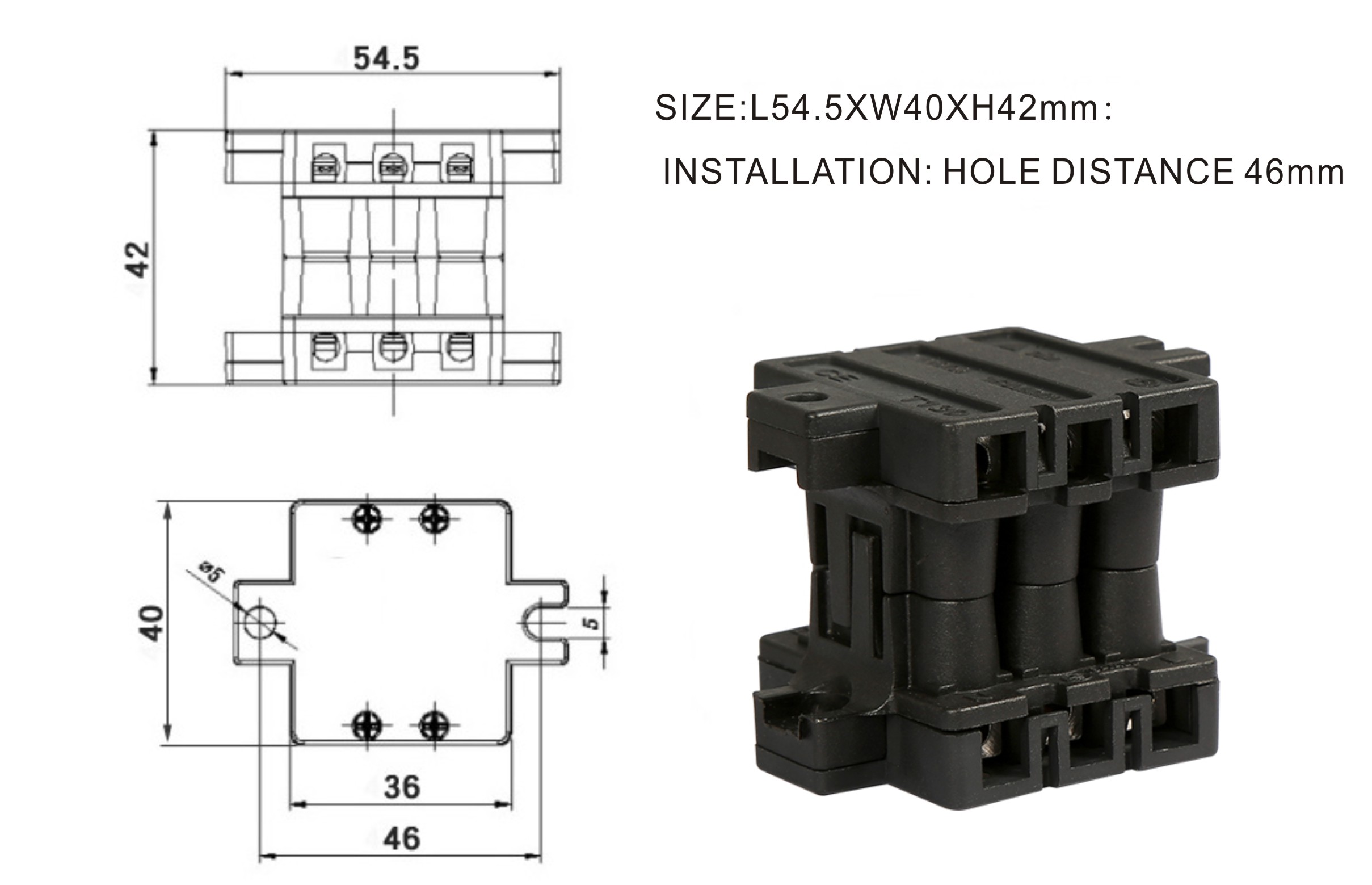

M29 Streetlight Knife Switch

• It adopts male and female plug-in connection design, which is safe and easy to plug in and out, and has stable conduction performance
• The connection terminal is made of high-precision copper material with good conductivity and heat dissipation performance
• Flame retardant grade: UL94-V0
• Applicable wire diameter: 0.75-2.5mm2; 12AWG-20AWG
• Stripping length: 7-8mm (Reference)

Technical Specification:

Rated Current	16A	Flammability	V-0
Rated Voltage	450VAC	Rated Impulse Voltage	4000V
Contact  Material	Phosphorus copper  with Nickel plated	Mounting	Screw
Insulation Material	PA	Ambient Temperature	110°
